Installation Instructions

Evening Star® accent lighting installation instructions.

By design, the Evening Star® system allows for lighting fixtures to be placed anywhere in your project and not limited by geometric shapes. This system installs easily to new or pre-existing work, and circuit cable can be routed with several options. Fixtures are connected without wire nuts or splicing with a unique, reusable Power Tap Connector. Two independent circuits can be controlled for lighting effects, by using the optional 10/3 Dual Circuit Cable. Once installed, Lamp Modules can easily be changed by the homeowner or groundskeeper with a handy Removal Tool that is available as an accessory.

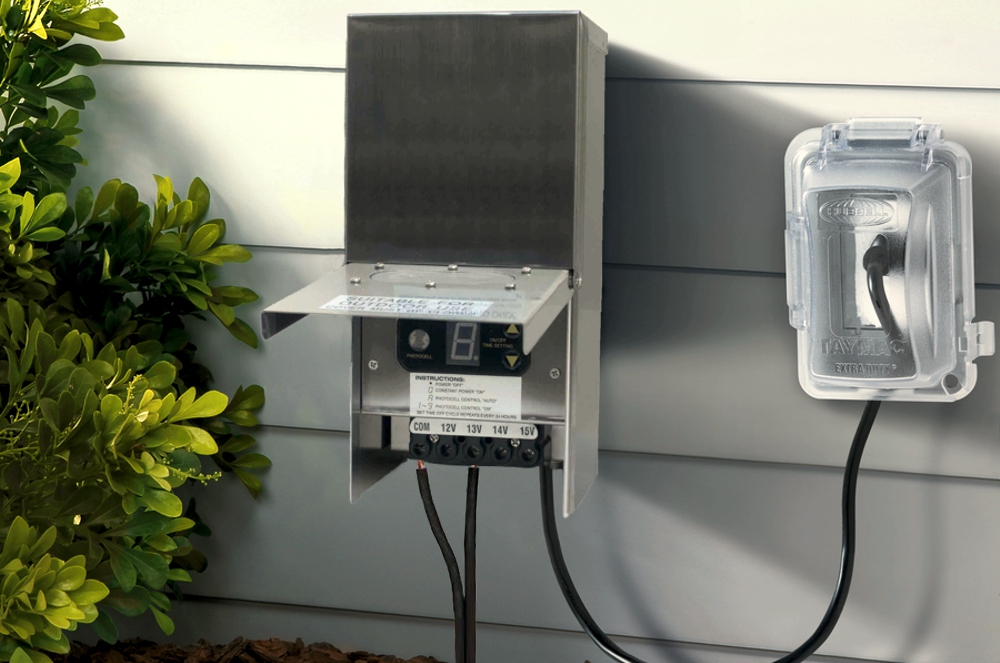

Low voltage power unit

Low voltage power unit

Circuit cable routing

Circuit cable routing

Pavers laid over wire

Pavers laid over wire

Drilling/coring process

Drilling/coring process

Cored pavers

Cored pavers

Spacing of the fixtures

Spacing of the fixtures

Lamp Support Assembly & Lamp Module

Lamp Support Assembly & Lamp Module

Circuit cable location under pavers

Circuit cable location under pavers


Power Tap Connector

Power Tap Connector


Fixture to circuit cable connection under paver

Fixture to circuit cable connection under paver

Joints sanded

Joints sanded

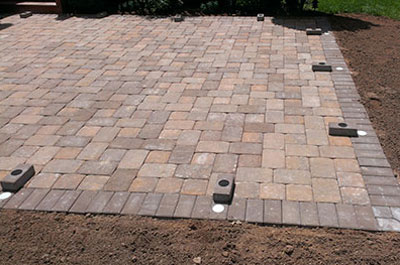

Completed installation

Completed installation

Core drilling of paving stone, brick, and natural stone can be obtained in several ways. Most Evening Star® Dealers offer core drilling services for a nominal fee. The contractor/installer can provide coring on the job site by using a professional hand held core drill, or with the Field Installation Kit, and basic 1/2" capacity electric drill. When drilling by hand, we recommend using the Adjustable Coring Template, which helps keep the bit centered.

When installing Evening Star® Deck or Dock Lighting, both surface and recessed mounting options are available. Decking boards are quickly drilled using Deck & Dock Installation Kit with a 1/2 capacity electric drill. Flush mounting is done in a single step, while recessed is a two step process. When drilling is complete, a DL250 Series Lamp Support Assembly is affixed with stainless steel screws, followed by the PL250 Series Lamp Module. Please see our Products Parts List for more information on all drilling equipment and accessories
